نمایشگر گرافیکی اردوان

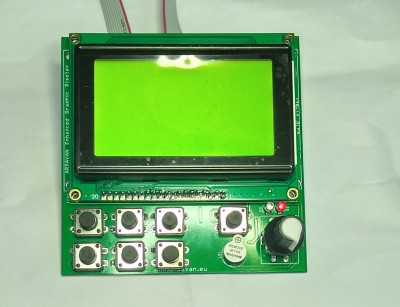

This full graphic Smart Controller contains a SD-Card reader, 6 PUSH-BOTTOM KEYs, rotary encoder and a 128 x 64 dot matrix LCD display. You can easy connect it to your Ramps board using the "smart adapter" included.After connecting this panel to your Ramps you don't need your pc any more, the Smart Controller supplies power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card

Blue Backlight with white words

Left, Right, Up, Down ENTER and ESCAPE buttons

Screen contrast adjustment

Arduino Reset button

The buttons are connected to only one analog input pin through resistors to give a different voltage for each button, thus saving on input/output pins. Reading the buttons is easy.
